Electro - Hydraulic Operating Table Manufacturer,Supplier and Exporter in India
Product Code : PHOT-11503

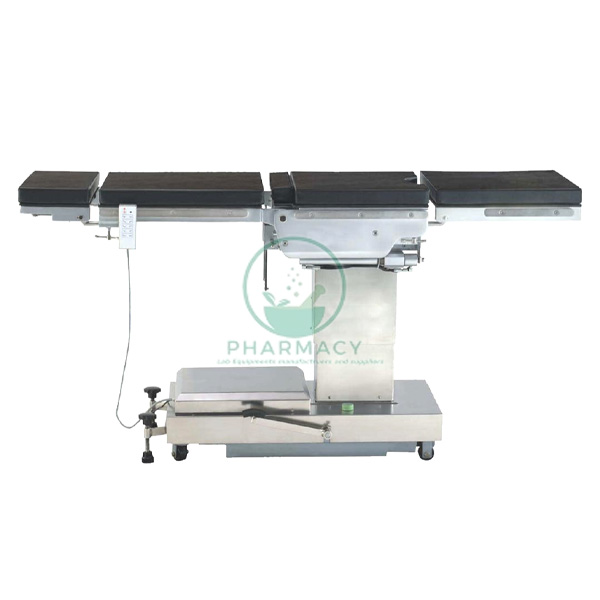

Quick answer. Electro - Hydraulic Operating Table — True to its meaning - "Powerful and complete", NML Electro-Hydraulic Operating Table is a high quality, reliable and well priced C-arm compatible Operating table. Supplied by Pharmacy Lab Equipment, Ambala.
Description
It is suitable for all types of surgery, including Cardio-thoracic, Orthopaedics, Urology& Gynaecology, Laparoscopy, Ophthalmology and imaging procedures like cardiac imaging, cervical angiography, ERCP and vascular imaging among others. Five section eccentrically positioned radio-translucent table top without cross members facilitates C-arm imaging. Radiotranslucent table top material for excellent fluoroscopy. State-of-the-art maintenance free Lifting System with hi-precision bearings. Non-corrosive SS304 Grade Stainless Steel base and cylinder covers for easy cleaning and hygiene. Operating positions i.e. Height adjustment, Trendelenburg, Reverse Trendelenburg, Lateral Tilt and Back Section are quickly and precisely controlled by handheld Remote with symbolic position figures. The powered movements are actuated by an Imported Electro-hydraulic System comprising of hydraulic motor pump and solenoid valves to assure smooth and quiet movements. Head and Leg Sections are removable and interchangeable, capacitating a single table’s use in varied surgical procedures. These are manually operated by means of ratchet system. Built-in Kidney Elevator - manually gear operated. Complete with SS304 Grade Stainless Steel Side-rails, Clamps and Standard Accessories.
Key features
- Technical Specifications :
- Standard Accessories :
Technical specifications
| Specification | Value |
|---|---|
| Table top size | 1905 x 505 mm |
| Minimum height (without mattress) | 715 mm |
| Maximum height (without mattress) | 1015 mm |
| Trendelenburg / Reverse Trendelenburg | 20° / 20° |
| Lateral Tilt (Left/Right) | 20° / 20° |
| Back section adjustment | +80° / -20° |
| Head section adjustment | +40° / -90° |
| Leg section adjustment | +15° / -90° |
| Load capacity | 180 Kgs |
| Power supply | 220V AC - 50Hz |
| 'L' shaped Anaesthetic Screen | One pc |
| Padded Shoulder Support | One pair |
| Padded Lateral Support | One pair |
| Radio-translucent Armboard with pad | Two pcs |
| Wristlet | One pair |
| Goepel Knee Crutch with straps | One pair |
| PU Foam Mattresst | One set |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
Related ot tables
- C-Arm Compatible Fully Electromatic O.T. Table With Accentric Base, Translucent top with all standard accessories of S.S. fitting & blue rubberized mattress - 50mm thick.
- C-Arm Compatible, Fully Electromatic O.T. Table, Translucent top with all standard accessories of S.S. fitting & blue rubberized mattress - 50mm thick.
- Gearmatic Hydraulic OT Table With Five Section Translucent Top
- Side End Control Super Deluxe Hydraulic Operating Table
- All OT Tables
Request a quote
Email the quantity you need to [email protected], or use the enquiry form on the contact page. Pharmacy Lab Equipment, Works: 788, opposite Manji Sahib Gurudawra, Manmohan Nagar, Ambala, Haryana 134003, India.
