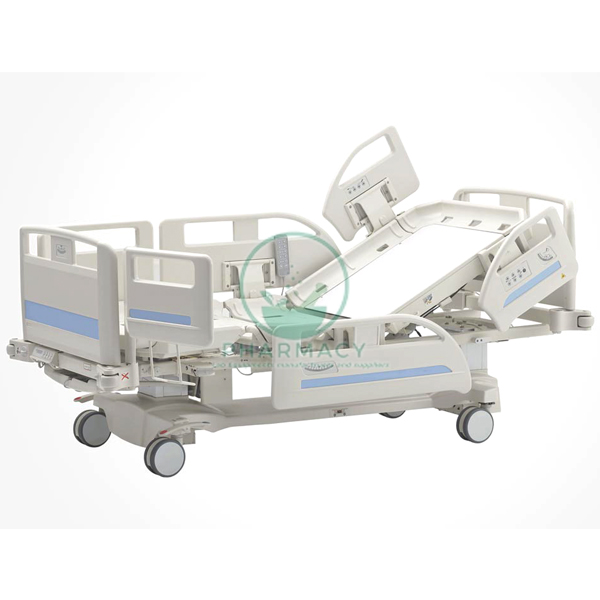

I.C.U. Bed Electric 5 Function Manufacturer,Supplier and Exporter in India
Product Code : PHIB-11833
Quick answer. I.C.U. Bed Electric 5 Function — Comfy ICU Bed (5- function) with electrically operated back rest tilting 0-70º, knee rest tilting 0-30°, trendelenburg tilting 0- 12°,Reverse trendelenburg tilting 0-12. Supplied by Pharmacy Lab Equipment, Ambala.
Description
Angle Gauge on Side rails display the angle of back rest and Trendelenburg / Reverse Trendelenburg. Manual/Electric CPR : The Electric CPR is easy and convenient to operate with one key control. Manual CPR is equipped with damping device, which can be used single handedly and allows the back rest fall slowly to ensure the safety of the patient, in case of power failure.
Product details
- With X-ray permeable backrest, Central nurse control system
- Embedded controls on both sides of guard rails
Basic Features
Technical specifications
| Specification | Value |
|---|---|
| Size | L 2240 mm ×W 1055 mm × H 495--895 mm (Adjustable Height). °. Bed extension -200 mm(+- 10 mm) |
| Split Guard Rails | Guard rail PP- 4 pcs provides protection to patient against fall. |
| X-ray cassette holder | Special sliding construction allows the cassette to be comfortably inserted beneath the mattress platform from the side of the bed. |
| Removable mattress platform | Plastic board mattress platform can be easily removed for sterilization. |
| H/F boards locks | The board locks prevent accidental removal of the bed boards when steering or handing the bed |
Models and variants
| Model | PHIB-11833-01 | PHIB-11833-02 |
|---|---|---|
| Function | Five | Five |
| Outer dimensions(Side rails up) | L2240*W1055mm (±10mm) | L2240*W1055mm (±10mm) |
| Mattress platform | L1965*W920mm (±10mm) | L1965*W920mm (±10mm) |
| Bed Height | H495-895mm (±10mm) | H510-910mm (±10mm) |
| Bed extension | 200mm (±10mm) | 200mm (±10mm) |
| Maximum backrest angle | ≥70° | ≥70° |
| Maximum thigh rest | ≥30° | ≥25° |
| TR/ATR | ≥12° | ≥12° |
| Left and right tilt | -- | -- |
| Height of side rails (above mattress platform) | 440mm (±10mm) | 380mm (±10mm) |
| Safe working load | 200kgs | 200kgs |
| Weighing system | Yes | No |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
