ICU Ventilator Pediatric Manufacturer,Supplier and Exporter in India
Product Code : PHIE-11786

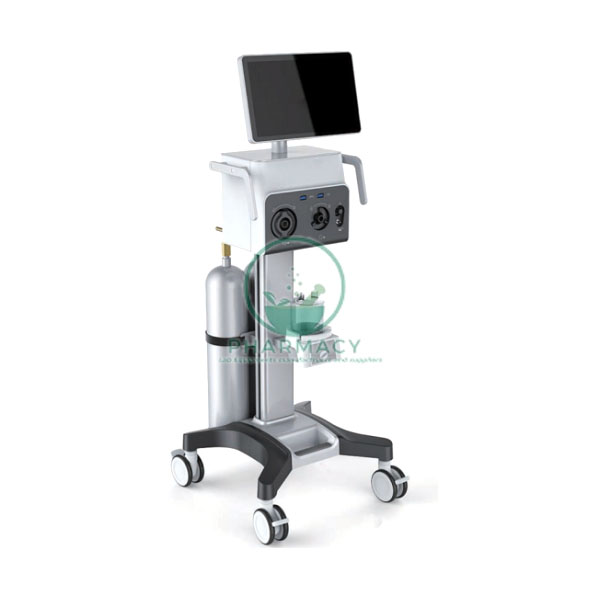

Quick answer. ICU Ventilator Pediatric — The ICU Ventilator is a state-of-the-art ventilator that's simple to configure, easy to operate, and versatile in use. Supplied by Pharmacy Lab Equipment, Ambala.
Description
It treats pediatric and adult patients with all acuity levels at ICU and Intermediate Care. With its comprehensive list of standard features, including the latest modes of ventilation, the ICU Ventilator is appropriate for all levels of patient acuity and in all care settings, from the patient's bedside to transport to another point of care. Equipped with functions that are usually found on intensive care ventilators, the ICU Ventilator comes with extensive ventilation modes, and the unique features make it a top level ventilator. Two yoke capability ensure the machine using properly without central gas supply and can be moved with machine together very easy. 15.6 inches big screen show all parameters clearly on the screen, 5 waveform and three loops show on screen synchronized. 12 kinds ventilation modes adapt to all range patients. The inspiration port and expiration port can be locked and very stable.The atomize function is integrated. Three levels alarm system, visual and sound alarm information. With multiple type of alarms, reminding and protection functions. With built-in backup power supply, when normal power supply shut down, back-up power supply will start work automatically. Self-check before running, eliminate system mulfuction. Advanced power management control technology. Separate design of electric and gas, keep safety running of ventilator.
Key features
- Adaptive
- Comprehensive
- Highlights
- Alarms and protection
- The AC power failure alarm
- High Minute Volume alarm
- Low Minute Volume alarm
- Internal battery backup low voltage alarm
- High tidal volume alarm
- Low tidal volume alarm
- High Airway pressure alarm
- Ventilator parameter ranges
- Working condition:
Technical specifications
| Specification | Value |
|---|---|
| Ventilation modes: | Spn-CPAP,PC-CMV,PC-ACV,PC-SIMV,PC-Dual,PAP,PC-AMV,PC-APRV,PC-MMV,VC-CM-V,VC-ACV,VC-SIMV |
| Tidal volume(Vt) | 10 ～ 2000mL |
| PEEP/CPAP | 0 ~ 30cmH2O |
| Oxygen | 21%-100% |
| I:E | 4:1-1:10 |
| Inspiratory time | 0.2S ~ 5S |
| Flow trigger | 0.2 ~ 15L/min |
| Pressure trigger | -0.5 ~ 20cmH2O |
| Pressure control | 5 ~ 90cmH2O |
| Pressure support | 0 ~ 90cmH2O |
| Pressure ramp | 0 ~ 2s |
| Expiratory trigger sensitivity | >210L/min |
| Gas source | O2 (280kPa-600kPa) |
| Power consumption | 50W |
| Backup battery | 2 hours after power failure |
Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
