Digital Three Channel ECG Manufacturer,Supplier and Exporter in India

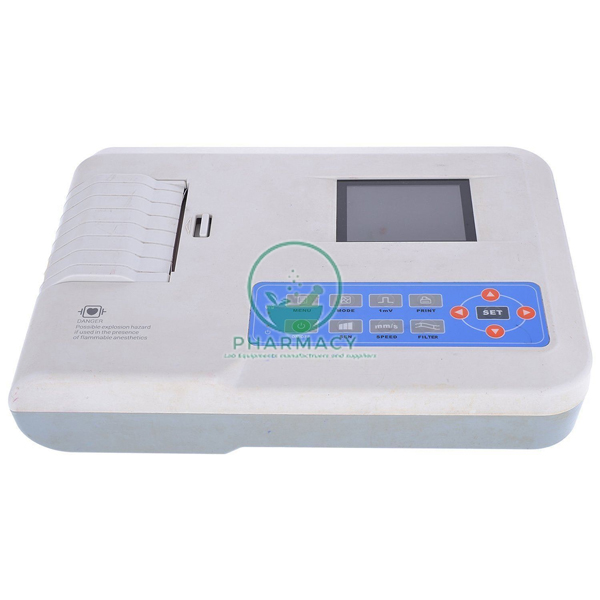

Digital Three Channel ECG

Product Code : PHDEP-11279

Quick answer. Digital Three Channel ECG — Auto-measurement,auto-analysis and auto interpretation functions. Supplied by Pharmacy Lab Equipment, Ambala.

Key features

  • Digital Three Channel ECG
  • 3.5'' TFT screen
  • 12 leads simultaneous display
  • Thermal printing system
  • Power supply both AC and DC
  • High capacity built-in lithium rechargeable battery
  • Battery power supports continually record 150 pieces of ECG
  • Built-in Database
  • Store more than 1000 pieces of archive
  • Digital signal processor for filter

Technical specifications

SpecificationValue
Net Weight2.25Kg
LeadStandard 12 leads
Patient leak current<10uA
Input impedance>=50M
Frequency response0.05Hz-150Hz(-3dB)
Time constantTime constant>3.2s
CMRR100dB
Dimension of recording paper80mm(w)x20m(L)paper
Paper speed25mm/s,50mm/s
Sensitivity choice5,10,20mm/mV. Standard sensitivity is 10mm/mV+0.2mm/mV
Measurement parametersHR,P-R interval , P Duration, QRS Duration,Q-T interval,Q-Tc,P Axis, QRS Axis,T Axis,R(V5), S› (V1),R(V5)+S(V1)
Noise level≤15µVp-p
Size315mm(L)×215mm(W)×77mm(H)

Confirm the full specification, the standard accessories supplied and the warranty terms against your requirement before ordering.
